Accessibility and Flexibility
The most flexible and accessible 2D fiber laser cutting system on the market specially designed for customers who seek maximum productivity in short, fast and highly variable production processes in sheet metal cutting. Power according to customer’s need. Compact, 20% space saving. Reduce unit cost per piece and improve response times for clients of various types.
Maximum cutting quality and perfect parts in materials such as steel, stainless steel, aluminum, brass and copper, among others; of thin and medium thickness sheets.
Option of taylor-made intelligent automation system, automated loading, unloading and storage and Production Management Intelligent Software for autonomous and strategic decision making.
Optimize your cutting machine and gain competitiveness.
Technical
Specs
| Feature | 3015 | 4020 |
|---|---|---|
| Maximum load | 950 kg | 1.800 kg |
| Heads | 1 | 1 |
| Maximum simultaneous positioning speed | 170 m/min | 170 m/min |
| Maximum axial acceleration | 19,6 m/s2 (2G) | 19,6 m/s2 (2G) |
| Machine tolerance VDI/DGQ3441 | ± 0.05 mm/m | ± 0.05 mm/m |
| Repeatibility | ± 0.025 mm | ± 0.025 mm |
| Power output | power according to need | power according to need |
| Dimensions | 3.000x1.500x100 mm | 4.000x2.000x100 mm |
| Fully enclosed and cabined machine | Included | Included |
| Smoke extraction system | Included | Included |
| Cooling system | Included | Included |
| Automatic table exchanger | Included | Included |

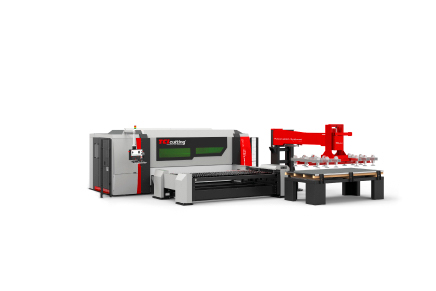

| Automatic loader and unloader | Optional | Optional |
| MODELS | Dimensions |
|---|---|
| 3015 | 3.000x1.500x80 mm |
| 4020 | 4.000x2.000x80 mm |
HIGH PRODUCTIVITY
Intelligent functions
LASER CUTTING MACHINES
Technological developments
Energy Cut Gas Mix 2.0®
Up to 70% reduction of gas consumption in oxygen and nitrogen cutting.
Rage Cut 2.0®
40% faster high power laser cutting on thick carbon steel parts.
Fly Cut 3.0®
Ultra fast cutting in grid and consecutive drills.
Nozzle Control 2.0®
Diagnosis of nozzle condition using artificial intelligence.
Smart Camera 4.0®
Intelligent camera for material detection and measurement.
Freezetec 2.0®
Water-cooled laser cutting system.
Automation
Automated cutting systems
Automation Systems

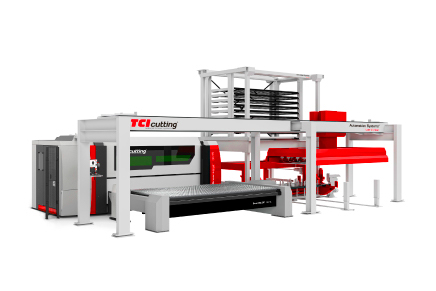

Load & Unload Storage®
TCI Loader & Unloader BRG 3.0 is the automation solution that best optimizes material flow.
Automation Systems

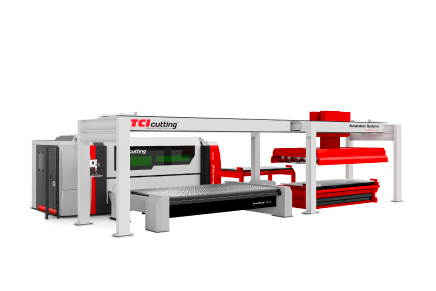

Load & Unload Bridge®
TCI Loader & Unloader BRG 3.0 is the automated solution that best optimises material flow.
Automation Systems

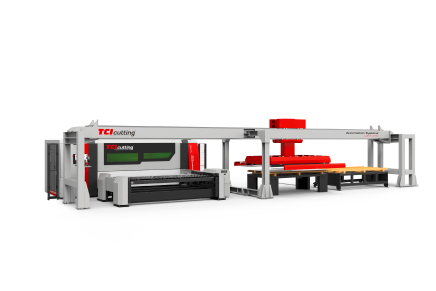

Load & Unload®
TCI Loader & Unloader BRG 3.0 is the automation solution that best optimizes material flow.
Automation Systems

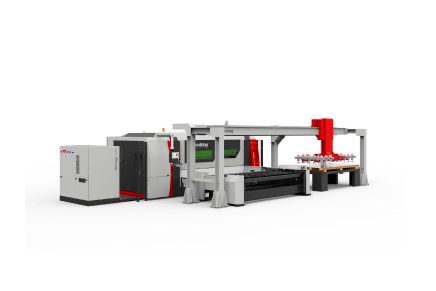

Bridge Load®
Smart solutions for loading in laser cutting facilities.
Benefits
Why
TCI Cutting
Smart software
Autonomous decision making.
Custom automation
Efficiency. One client, one solution.
MAS Concept®
Comprehensive 360º solution. 24 hours of productivity in the factory.
TCI Training
Tailor-made certified training programmes.
Implementation of production processes
Optimisation. Total integration. Industry 4.0.
Predictive technical assistance
Maximum efficiency without downtime. Experts team.
